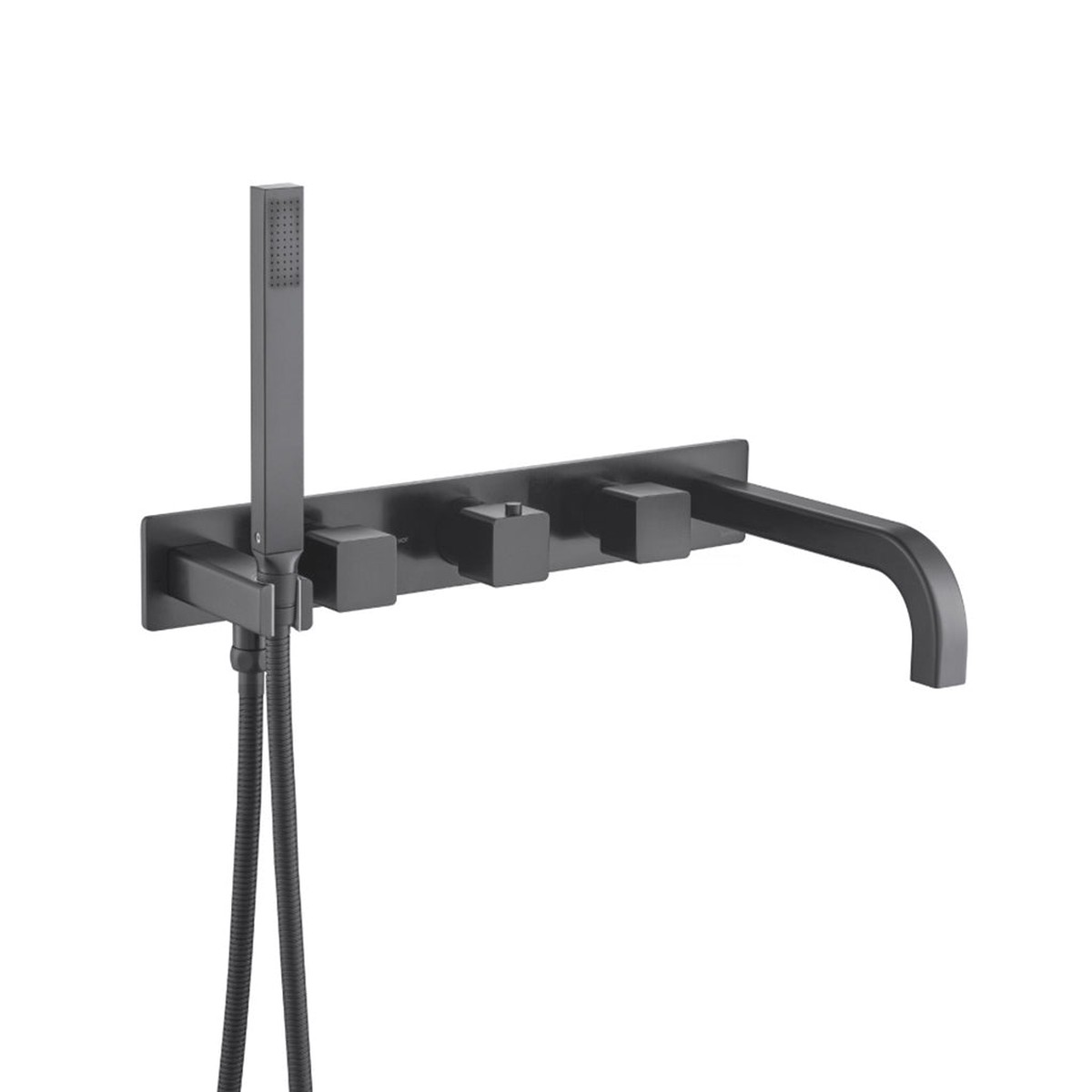

Serie 196 (2 Output Ports) Hand Shower Tub Faucet (Complete) – Wall Mount – 18 BrassMatt Black

<p>[additional]</p><p><strong>Included:</strong></p><ul><li><span>196.2691TMB </span>Tub Faucet</li><li><span>TVH.2691 Thermostatic Valve </span></li><li>Qty: 1</li></ul><p><strong>Documents:</strong></p><ul><li><span>Spec Sheet (.PDF) </span></li><li>Installation Instruction (.PDF)<span> </span></li><li><span>Parts Diagram (.PDF)<span> </span></span></li></ul><p>[/additional]</p><p>The TVH.2691 Thermostatic valve features 3/4 NPT connections and has 2 water outputs [ports] (one for the tub spout and one for the handheld). Both water outputs are operable simultaneously, i.e both at the same time, or one at a time. The middle handle sets the temperature. The left handle controls output port 1 and the right handle controls output port 2. Each port has full volume control capability. The installation of the spout and handheld shower outlet are interchangeable.</p><p><strong>Features:</strong></p><ul><li>Spout Projection = 9</li><li>Turn center knob to set temperature</li><li>Turn right knob to activate output 1</li><li>Hand Shower</li><li>Turn left knob to activate output 2</li><li>Tub Spout</li><li>Thermostatic Valve Flow Rate</li><li>8.0 GPM @ 60 PSI</li><li>Hand Shower & Tub Spout positions can be swapped</li><li>Material: Brass</li><li>Finish/Color: Matt Black</li><li>Dimensions: W: 17,51" * H: 2,67" * D: 5,09"</li><li>Weight: 16 lb.</li><li>Rustproof: Yes</li><li>Warranty (Years): 1</li><li>Material Warranty: Yes</li><li>Finish Warranty: Yes</li><li>UPC Certified: Yes</li><li>ADA Certified: Yes</li><li>Easy Installation: Yes</li></ul>
